Overview :

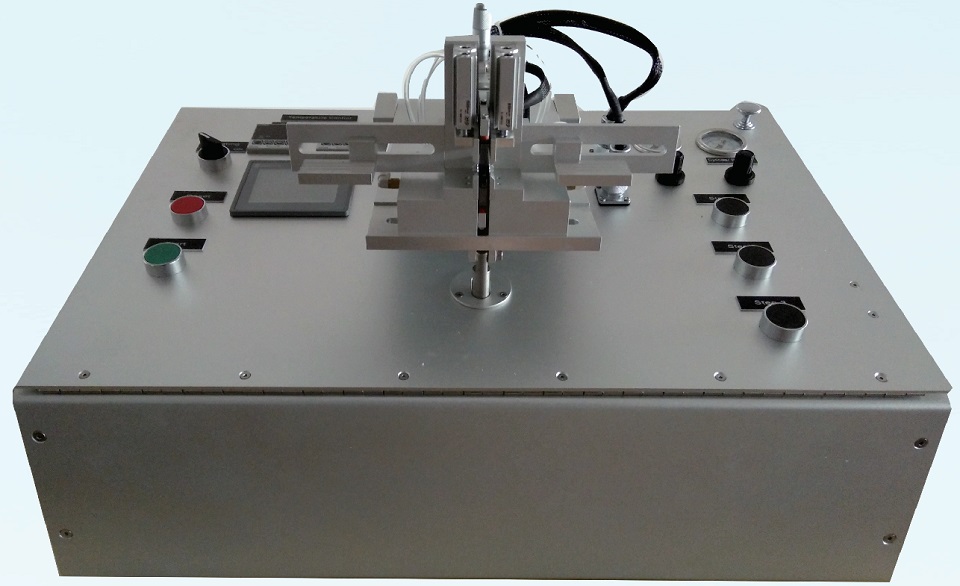

Hot Die Welding Machine HW-400 is mainly used for welding the proximal and distal ends of balloon tube , and also for butt welding of tubes . The welding principle is to use a high temperature mould to heat the welding material , so that the two welding materials reach the melting point and fuse together . The device is one button operation , it is simple and covenient to use . And the equipment is highly cost-effective .
Technical specifications
Demensions : 585*460*300mm
Power and insurance : 220V 2A ( 400W ) ; ( heating power : 100-200W )
Air source input : 0.7MPa
Number of heated die holes : 3 holes
Settable parameters : 10 sets
Welding temperature ,welding time ,cooling time . automatic welding interval
